BOWSPRITS

Great NEW design for 2017:

We have finished manufacturing of the next version of bowsprit which takes the best elements of the previous 2 and adds some further improvements.  This gives you the ability to easily lock the pole into position or remove it in seconds for storage or cruising.  Only a folding pad eye on the usable part of your deck so no tripping hazards.  Ability to add a 2nd folding pad eye so you can have an extended and retracted position for the pole.

It has:

  • 3 fixed length options (5′ or 6′ or 7′ pole )
  • 3″ diameter with a hefty 0.25″ wall thickness of 6061 anodized aluminum
  • aft end locks down on a folding 11/32″ pad eye (unchanged)
  • forward end has stainless eye bolts instead of machined aluminum to increase wear resistance
  • forward locking mechanism has been totally re-designed to open up
    • 7″ long x 2″ wide x 4.5″ high
    • can easily open to remove pole (lift it out) as opposed to sliding it back into your cabin top or forward off the boat
    • bolts down using regular bolts as opposed to the U-bolts that have a limited length
    • minimizes the amount of hardware remaining on deck when removed

This slideshow requires JavaScript.



If you are interested in one of these poles, please contact us at sailing@bell.net.

PRICE:

2017 price is $695 Cdn for 6′, $725 Cdn for 7′.  This includes one 11/32″ folding pad eye.  2nd pad eye available for $50 Cdn.  Sorry, 5′ poles are sold out already.

Not included are bolts/nuts/washers for mounting pad-eye and forward ring, packaging, delivery, shipping.

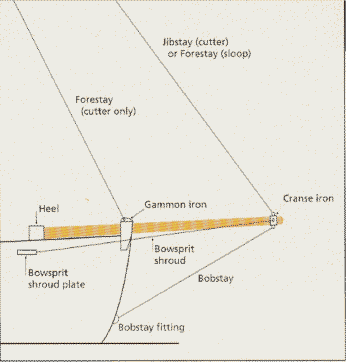

BRIDLE or BOBSTAY:

Note that the force on the forward attachment point of the bowsprit is upto 2x more than the pull of the Gennaker at the tack.  This will hold in light winds but with heavier winds or when the sail collapses and then POPs open, this mount can rip out of your foredeck or the pole could fold.  It is therefore recommended to add a bridle (also known as a bobstay) from the forward end of the pole down to a pad eye on the leading edge of the boat closer to the waterline.  This should be a non-stretch cable or line to take the majority of the pulling force of the sail.  Only you can assess how hard you push your boat.

bobstay
